平板型 · Modern flat shingle — /products/flat.html
Clean, simple lines for a modern roof. The Flat shingle profile suits minimalist villas and contemporary architecture — the same stone-coated durability in an understated form.
The Flat is the modernist choice — a low-profile shingle that reads as clean and architectural, letting the building rather than the roof do the talking.
A flat, understated face with crisp shadow gaps — the contemporary counterpoint to our decorative waves. It carries the same five-layer stone-coated build, just in a minimalist form.
At roughly 2.4–2.8 kg per tile and ≈ 2.5 tiles/m², the finished roof is a fraction of the weight of clay or concrete — so it can go straight over an existing roof without reinforcing the structure.
The surface is natural basalt stone granules, not paint. Dark basalt blocks UV at the rock itself, and a clear acrylic over-glaze seals every chip — so color holds for decades instead of chalking like a painted metal sheet.
The interlocking steel body is rated to the highest external-fire class and stands up to high-wind zones. Recommended roof pitch ≥15°; profiles ship flat-packed and container-optimized for export.
Every Flat tile is built up from a Galvalume core to a sealed stone surface — the same structure the world's premium stone-coated brands use.
Aluminum-zinc steel, AZ50–AZ150 coating, 0.2–1.0 mm.Aluminum-Zinc steel
Epoxy/polyester primer both sides — back-coat is key to lifespan.epoxy primer
Acrylic base coat, 150–300 g/m², locks stone to steel.acrylic base coat
Natural basalt / ceramic-coated chips, 3–5.5 kg/m².natural basalt granules
Clear acrylic seal, 10–25 μm, anti-fade + weathering.clear over-glaze
Export specs shown dual-standard where it matters. Figures reflect our factory parameter set; third-party test reports available on request.
| Nominal size | 1200 × 420 mm |
|---|---|
| Effective cover length | ≈ 1140 mm |
| Effective cover area | ≈ 0.40 m² |
| Tiles per m² | ≈ 2.5 pcs (order by cover area + 3–5% waste) |
| Weight per tile | 2.4–2.8 kg (0.4–0.5 mm base) |
| Base steel | Galvalume / Aluminum-Zinc (DX51D+AZ), 0.2–1.0 mm gauge |
| Coating weight | AZ50 / AZ100 / AZ150 g/m² (China AZ150 ≈ US AZ50 oz/ft²) |
| Surface | Natural basalt + ceramic-coated granules, clear acrylic over-glaze |
| Recommended pitch | ≥ 15° (confirm to site structure) |
| Fire performance | External fire — up to Class A (UL 790 / ASTM E108) |
| Standards referenced | ASTM A792, EN 10346, JIS G3321, AS 1397, GB/T 14978 |
Certification marks indicate the standards this profile is built and tested against; project-specific third-party reports are issued per order and market.
The colors used across our project references. Color comes from mineral granules, not paint, so it resists UV and acid rain. Custom shades matched to RAL / Pantone from 300–500 m² MOQ.
Screen colors are indicative — request a physical sample kit before specifying. Quoted color durability: ΔE ≤ 3 over 10 years on standard shades, ΔE ≤ 2 achievable on custom.

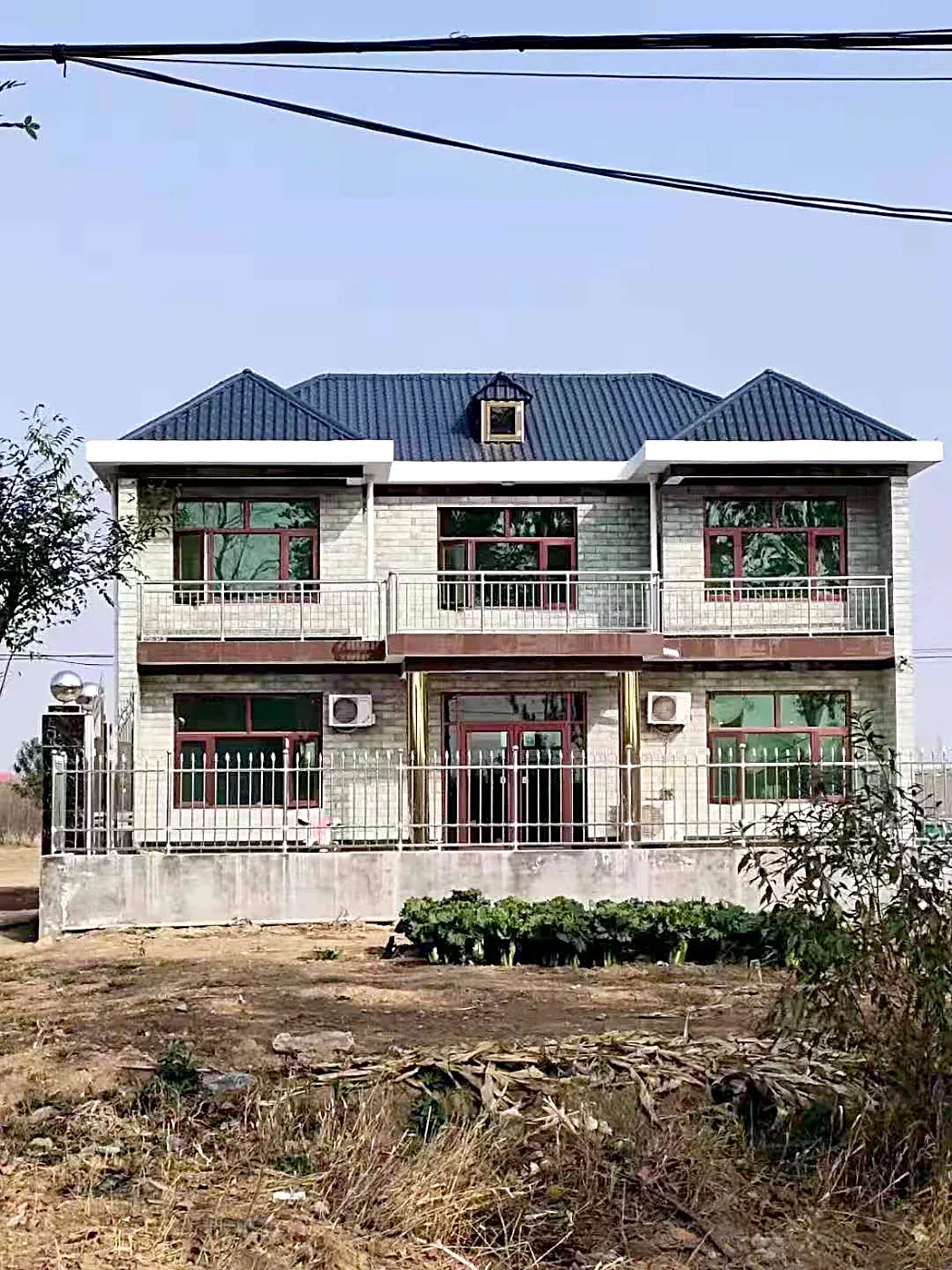

One profile, many looks — driven mostly by color choice and building style.
Low-profile lines for contemporary architecture.
Uniform, understated roofs across a whole development.
A quiet roofline that lets the façade lead.
Factory-direct means we adjust the product to your codes, climate and brand — not the other way around.
Real tile, real stone-chip color chips — shipped to your door. 24-hour quote on request.
